傳統的蒸汽壓機復合LVT地板生產線，由于需要采用鍋爐加熱產生蒸汽進行長時間的模壓而成，不僅能耗大，還需要大量人員操作，造成生產效率低下，同時機器所占場地大，操作繁瑣。

全新復合結構的LVT軟質復合地板生產線是突破一系列技術難關研發出來的，該生產線填補了國內市場的空白，可完全取代傳統的蒸汽模壓復合工藝。

生產線具有以下優點：

       1、占用場地小

       2、操作簡單便捷

       3、生產效率高

       4、更換產品快，可在任意花色間切換

       5、生產成本低

LVT軟質復合地板生產線是常州金緯擠出機械制造有限公司不斷創新改進的產品，可以替代傳統層壓機的生產方式，該生產線可實現在線復合，在線壓花，在線回火等功能，生產線具有占用場地小，生產效率高，操作簡便等特點。

The traditional steam press compound LVT floor production line, due to the need to use boiler heating to produce steam for long time die pressure, not only energy consumption, but also a large number of personnel operation, resulting in low production efficiency, at the same time the machine occupies a large site, operation tedious.

The new composite structure of LVT soft composite floor production line is developed through a series of technical difficulties. The production line fills the gap in the domestic market, and can completely replace the traditional steam molding compound process.

The production line has the following advantages:

1. Small occupancy of the site

2. The operation is simple and convenient

3. High production efficiency

4. Change the product quickly, can switch between any color and color

5. Low production cost

LVT soft composite floor production line is a continuous innovation and improvement product of Changzhou golden weft sheet plate Equipment Manufacturing Company. It can replace the traditional layer press production method. The production line can achieve online composite, online embossing, online tempering and other functions. The production line has the characteristics of small occupancy, high production efficiency, easy operation and so on.

1. 在線擠出生產線：

1.1 擠出機：SJZ80/156（電機功率75KW）

1.2生產線擠出產量：2600平方/天

1. online extrusion line:

1.1 extruder: SJZ80/156 (motor power 75KW)

1.2 production line extrusion output: 2600 square per day

2. 模具：

2.1 模具采用阻流棒控制形式，可快速調節出料均勻

2.3上下模唇可微調，更好的控制產品厚度

2. mold:

2.1 the mould adopts the control rod of choke rod, which can adjust the discharging evenly.

2.3 upper and lower die lip can be fine-tuned to better control product thickness

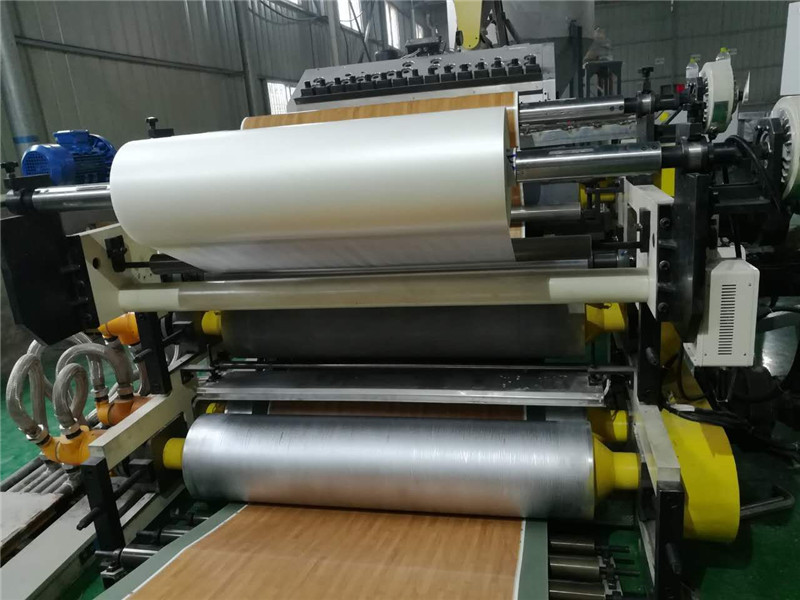

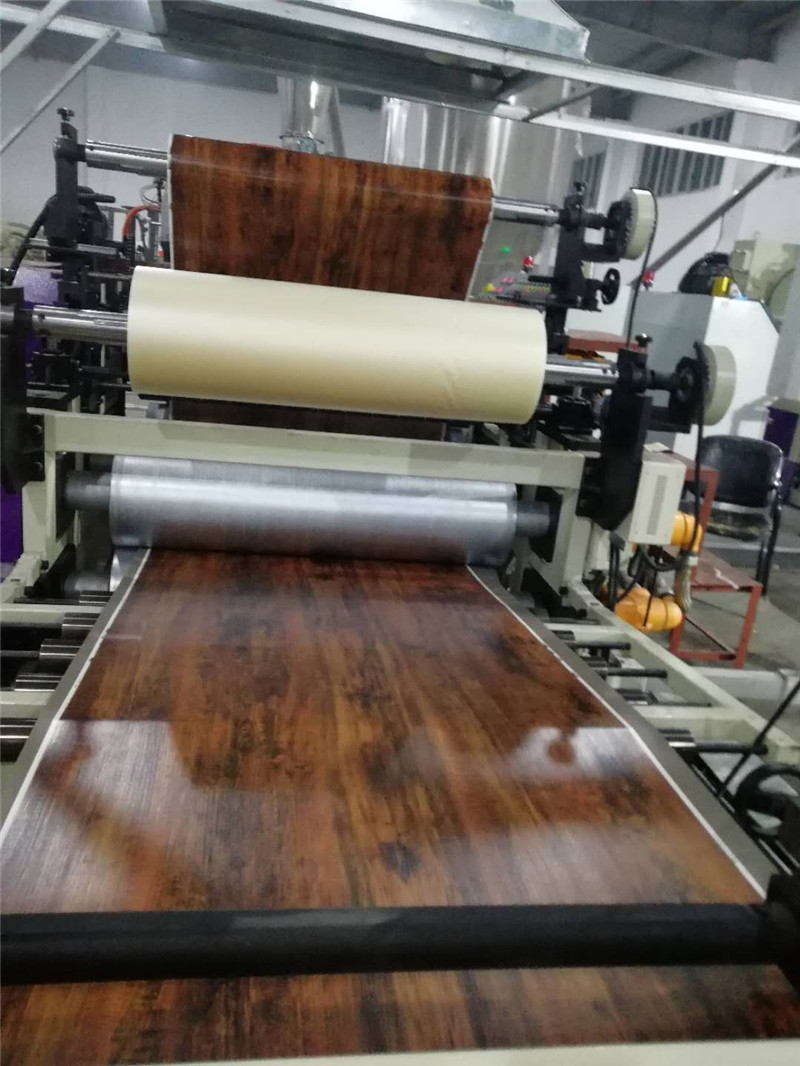

3. 六輥復合成型機：Six-roller composite forming machine:

3.1 采用段復合設計，可以減少表面貼合材料的拉伸

3.2 創新的加熱過渡輥設計，可確保較厚耐磨層的復合強度

3.3 壓花輥的安裝設計，壓花效果好，更換花輥更方便

3. six roll compound molding machine

3.1 the use of segmental composite design can reduce the tensile strength of surface bonding materials.

3.2 the innovative heating transition roller design ensures the composite strength of the thicker wear-resistant layer.

3.3 the design of the embossing roller is good, and the embossing effect is good. It is more convenient to change the flower roller.

4. 回火及吸水牽引機

4.1 通過在線回火設計，可有效控制產品的平整度及收縮率

4.2 吸水牽引機可有效去除制品表面的水份

4. tempering and water absorbing tractor

4.1 by online tempering design, the flatness and shrinkage of products can be effectively controlled.

4.2 Water-absorbing tractor can effectively remove moisture from the surface of products

5. 自動定長剪板機Automatic length fixing cutter.

5.1 剪板機入口帶輔助牽引設計，可更好控制剪板的穩定性

5.2 特殊的切割設計，可以***大限度的減少產品端面的毛邊

5.3 產品的自動定長功能，方便人員操作，切割精度高

5. automatic fixed length shearing machine

5.1 the design of the auxiliary belt of the guillotine belt can better control the stability of the shear plate.

5.2 special cutting design can minimize the edge of the product.

5.3 the automatic length fixing function of the product is convenient for people to operate, and the cutting accuracy is high.

備注：以上規格參數如有變更，恕不另行通知。Note:The specifications are subject to  change without prior notice
